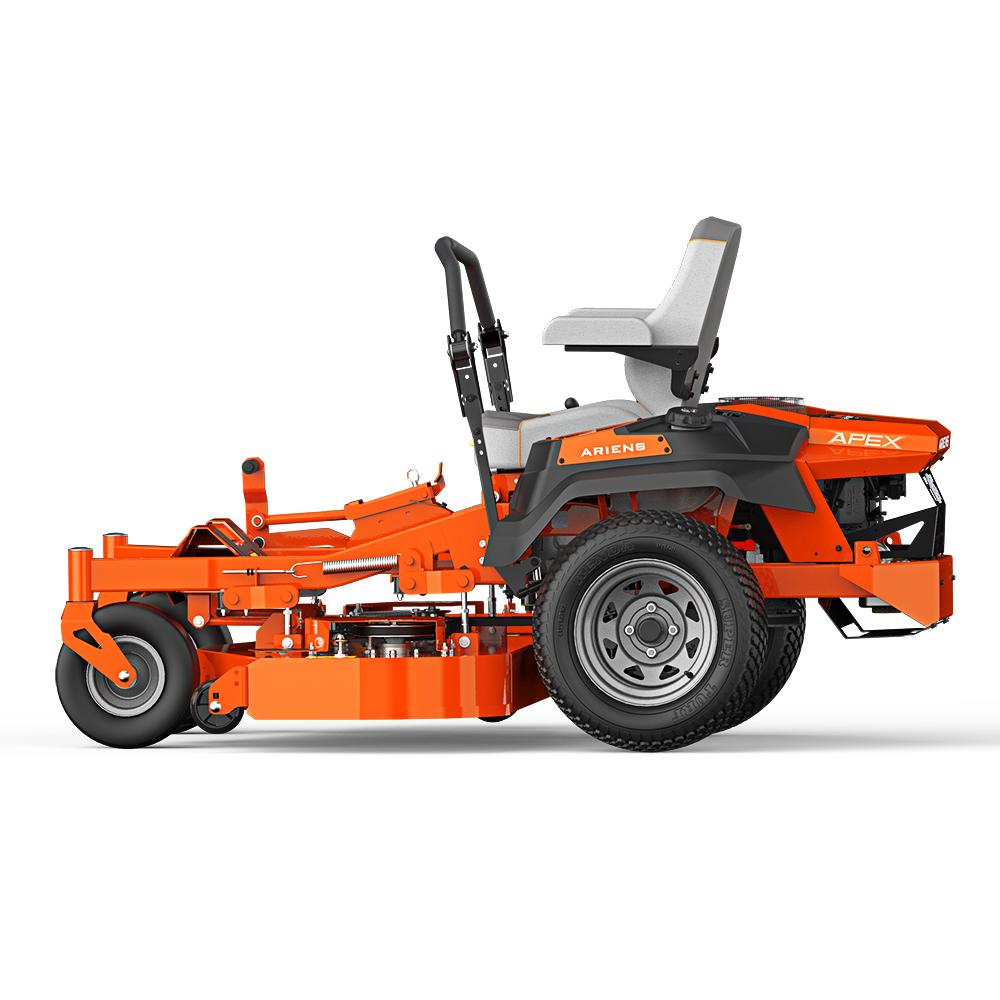

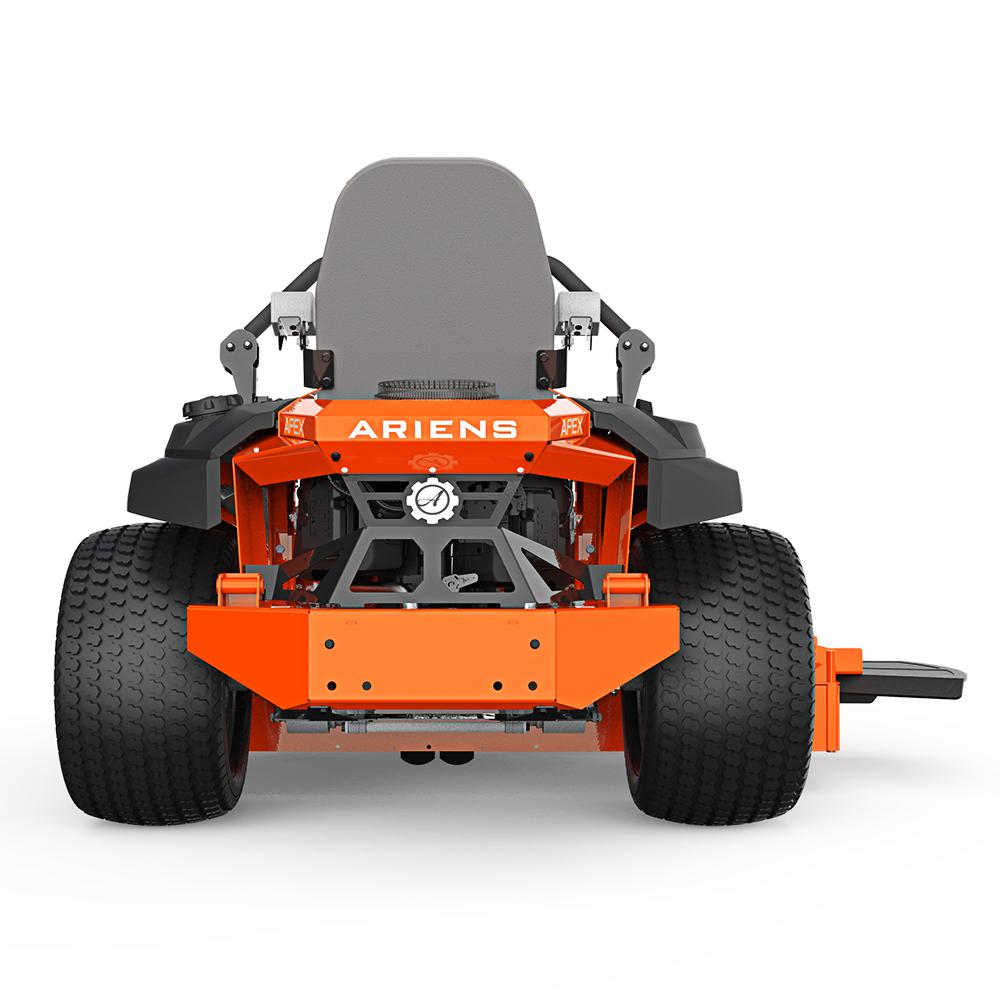

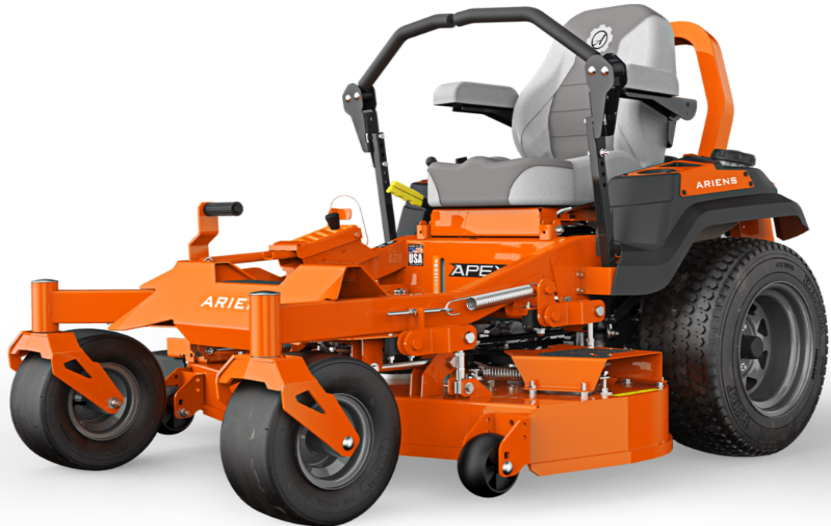

Ariens Apex 48 KW Zero Turn Lawn Mower

Ariens Apex 48 KW Zero Turn Lawn Mower

• Featuring a 48’’ ENVY™ ELITE CUTTING SYSTEM fabricated deck that’s 5½’’ deep and made of 10-gauge steel
• Powerful 23 hp/726 cc Kawasaki FR691V engine

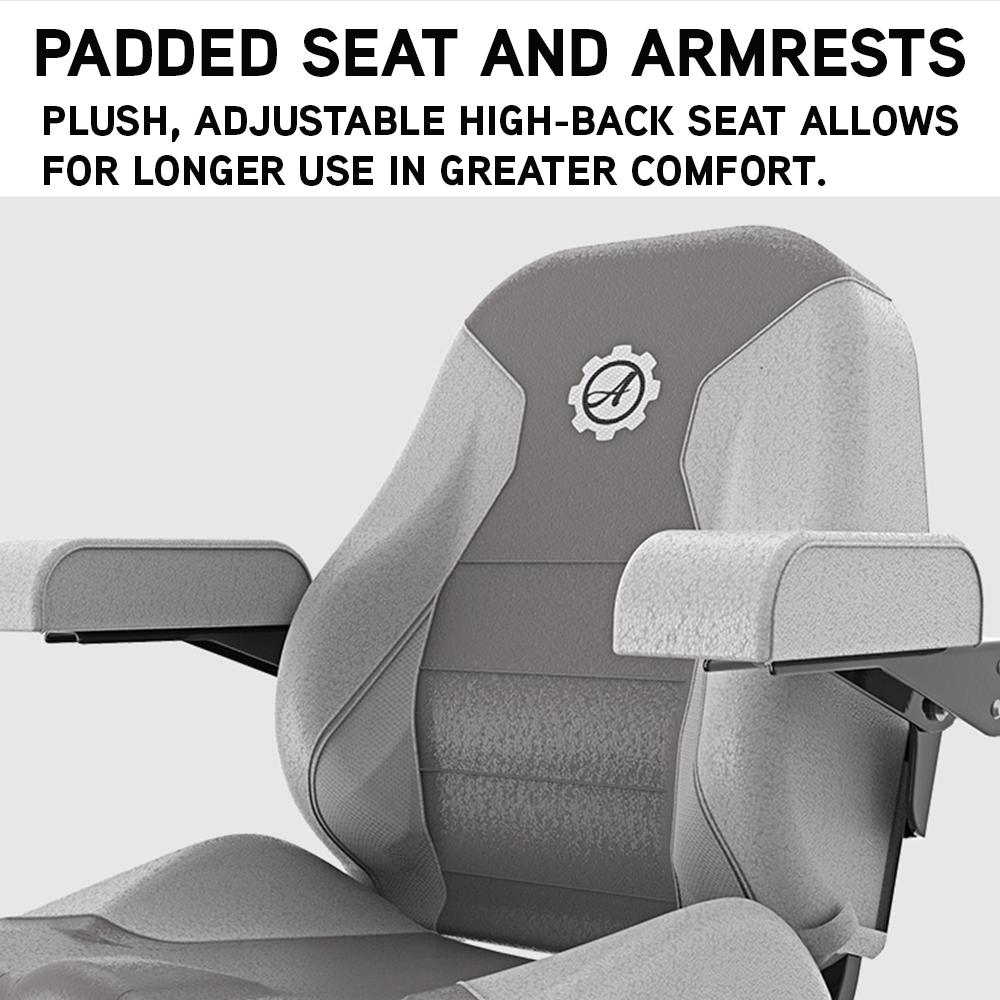

• Fully tubular steel frame, Self-adjusting belt technology, High-Back Padded Seat and armrests, Foot-operated deck lift

SPECIFICATIONS:

ENGINE

Engine Brand
Kawasaki

Starting System
12-Volt Key Start

Engine Cycle
4-Cycle

HP
23 HP

CC
726 CCs

Fuel Tank Size
5 Gallons

Engine Cylinders
2 Cylinders

Oil Filter
Yes

Consumer Engine Warranty
2 Years

Commercial Engine Warranty
1 Year

MOTOR

Battery Included
Included

Battery Voltage
12 Volts

Battery Type
Lead Acid

DECK

Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)

Deck Material
10-Gauge

Deck Construction
Welded

Spindle Material
Aluminum

Blades
3 Blades

Deck Positions
15 Positions

Cutting Width
48 Inches

Cutting Height
1.5-5.0 Inches

Deck Lift System
Manual Foot Operated

Engagement
Ogura GT1A Electric Clutch

Deck Drive
Belt

DRIVE

Speeds
Variable

Maximum Speed
8 MPH

Maximum Reverse Speed
4 MPH

Drive Wheels
Rear Wheels

Transmission Type
Hydrostatic

Drive System
ZT-3100 Hydro-Gear Transaxle

ACCESSORIES

Rear Bagger
Sold Separately

Engine Guard
Yes

Seat Type
Adjustable High Back w/ Seat Springs

Hour Meter
Included

Arm Rests
Included

Trailer Hitch
Sold Separately

Mulcher Kit
Sold Separately

Headlights
Sold Separately

WHEELS

Front Tire Size
13 x 6.5 Inch

Front Axle
Fixed

Rear Tire Size
22 x 10 Inch

Tire Type
Pneumatic Wheels

OVERVIEW

Certification
ANSI

Weight
823 Pounds

Product Length
71.5 Inches

Product Width
50.0 Inches

Product Height
42.0 Inches

Consumer Warranty
3 Years

Commercial Warranty
1 Year
